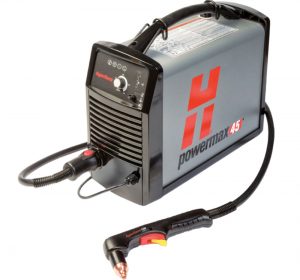

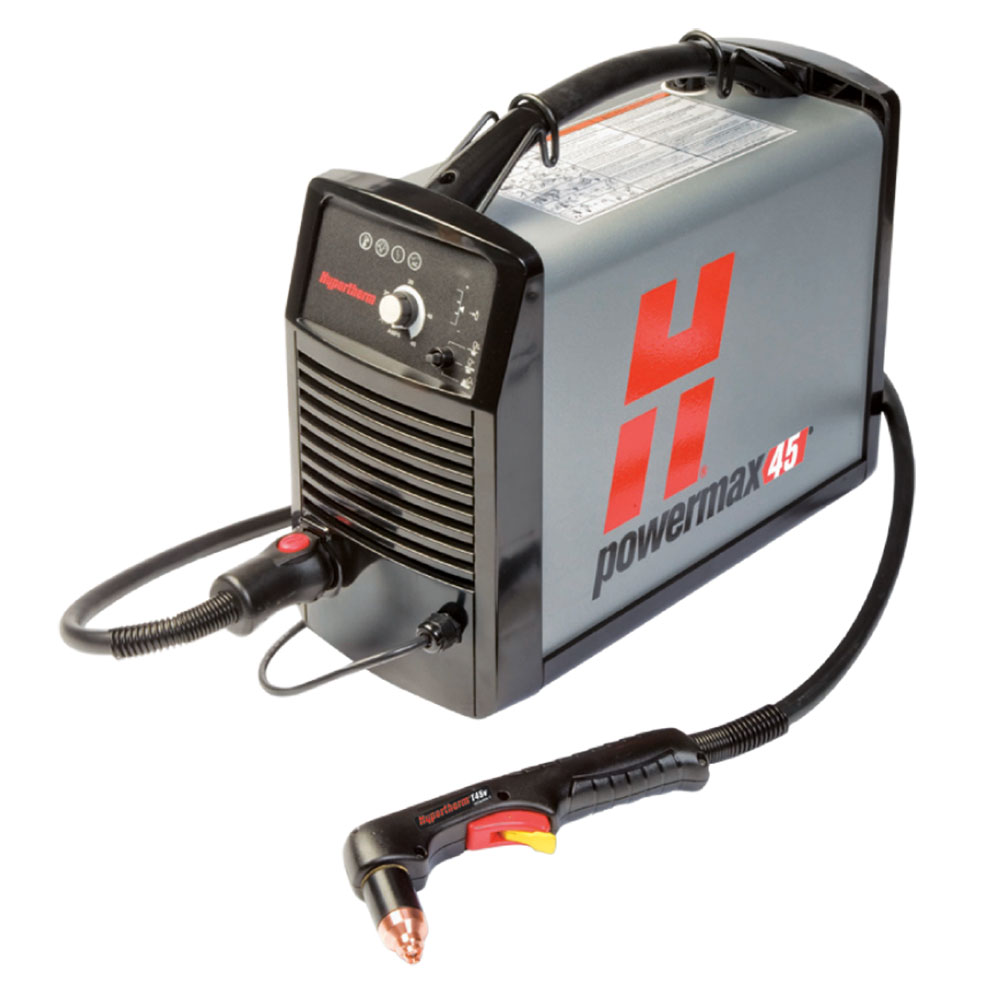

Powermax45® XP

Detail

Professional-grade plasma system for cutting 5/8″ thick metal, gouging, and marking.

CapacityThicknessCut speed
Cutting
Recommended16 mm (5/8″)500 mm/min (20 ipm)
22 mm (7/8″)250mm/min (10 ipm)
Severance (hand cutting)29 mm (1-1/8″)125mm/min (5 ipm)
Pierce*12 mm (1/2″)
* Pierce rating for handheld use or with automatic torch height control



CapacityMetal removal rateGroove profie*
 Gouging
Typical gouge3,4 kg (7.5 lbs) per hour3,2 mm (.12″) D x 6,8 mm (.26″) W

Easy-to-use with versatile design

  • Small size and light weight provides exceptional portability for a 5/8″ rated cutting system.
  • Handheld and mechanized usage with CNC interface and FastConnect™ torch connection.
  • Patented drag-cutting technology makes it easy to use – even for first-time operators.
  • Tackle different jobs with multiple, easy-to-use torch styles.
  • No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
  • Mark, score and make precision gouges with new low amp process.

Maximum productivity

  • Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 1/4″ mild steel.
  • Spend less time on grinding and edge preparation due to superior cut and gouge quality.
  • Fast change out of consumables using the new torch disable switch feature.

Rugged and reliable

  • Duramax® Lock torches are designed for high-impact and heat resistance.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Hypertherm Certified™ reliability ensures performance in the most demanding environment.
Input voltages (3-PH) and currentsVACHzAmps
200/20850/60262/252
22050/60238
24060219
38050/60138
40050/60131
44050/60120
48060110
6006088
Output voltage 200 VDC
 Output current 400A
 Duty cycle 100% at 40°C (104°F) at 80 kW
 Power factor 0.98 @ 80 kW output
 Maximum OCV 360 VDC
 Dimensions 118 cm (46.4″) H, 88 cm (34.7″) W, 126 cm (49.7″) L
 Weight with torch 851 kg (1877 lbs)
Gas supply

Plasma gas

Shield gas

Gas pressure

 O2, N2, F5*, H35**, Air, Ar
N2, O2, Air, Ar
8.3 bar (120 psi) Manual gas console
8 bar (115 psi) Automatic gas console
MaterialCurrent
(amps)
Thickness
(mm)
Approximate
cutting speed
(mm/min)
Thickness
(inches)
Approximate
cutting speed
(ipm)
Mild steel
O2 plasma
O2 shield
300.5
3
6
5355
1160
665
.018
.135
1/4
215
40
25
 O2 plasma
Air shield
 80 3
12
20
 6145
1410
545
 135
1/2
3/4
 180
50
25
O2 plasma
Air shield
 130 6
10
25
 4035
2680
550
 1/4
3/8
1
 150
110
20
