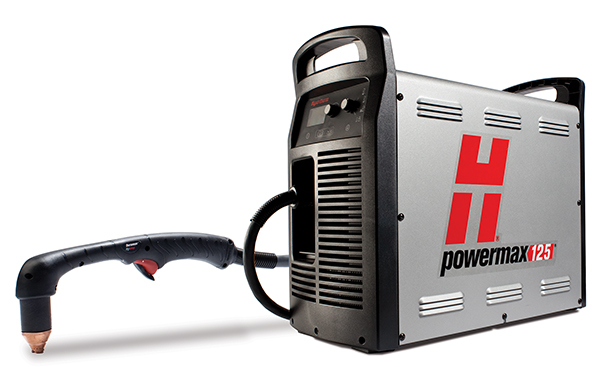

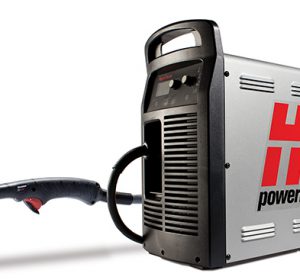

Powermax125 ®

Detail

Professional-grade plasma metal cutting and gouging system for handheld cutting 38 mm and mechanized piercing 25 mm.



CapacityThicknessCut speed
Cutting
Recommended 10mm 500mm/min
 12mm250mm/min
Severance (hand cutting)16mm125mm/min
Pierce*25 mm

* Pierce rating for handheld use or with automatic torch height control

CapacityMetal removal rateGroove profie*
 Gouging
Typical gouge12,52 kg/hr4,3 mm–7,9 mm D x 6,1 mm–9,9 mm W

* Actual groove profie varies with torch angle, arc stretch, and technique

Maximum productivity

  • Finish jobs faster with cut speeds 5 times greater than oxyfuel on
    12 mm mild steel.
  • Spend less time on grinding and edge preparation due to superior
    cut and gouge quality.
  • Maximize your cutting time with 100% duty cycle.

Low operating costs

  • Reduce costs with consumable life up to four times longer than
    other systems in this amperage range.
  • Electrode end-of-life detection protects the torch and workpiece
    from damage by automatically stopping power when the electrode
    is overused.

Easy-to-use for cutting and gouging

  • No need to change the air pressure. Smart Sense™ technology
    ensures that it is always correctly set.
  • Tackle different jobs with multiple, easy-to-use torch styles.

Built and tested to withstand the harshest conditions

  • Duramax™ Hyamp™ torches are designed for high-impact and heat
    resistance.
  • SpringStart™ technology ensures consistent starting and a more
    reliable torch.
  • Low maintenance maximizes uptime.
Input voltages400 V, 3-PH, 50/60 Hz
Kilowatt output
21,9 kW
Input current @ 3,8 kW400 V, 3-PH, 36 A
Output current30–125 A
Rated output voltage175 VD
Duty cycle @ 40° C100% @ 125 A, 400 V, 3-PH
Open circuit voltage (OCV)305 VDC
Dimensions with handles592 mm D; 274 mm W; 508 mm H
Weight w/4,5 m torch48,9 kg
Gas supplyClean, dry, oil-free air or nitrogen
Recommended gas inlet flw
rate/pressure
Cutting: 260 l/min @ 5,9 bar
Gouging: 212 l/min @ 4,1 ba
Input power cable length3 m
Power supply typeInverter – IGBT
Engine drive requirement40 kW for full 125 A output
CertifiationsCE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus,
Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
WarrantyPower supplies have a 3-year warranty and torches a 1-year warranty.
