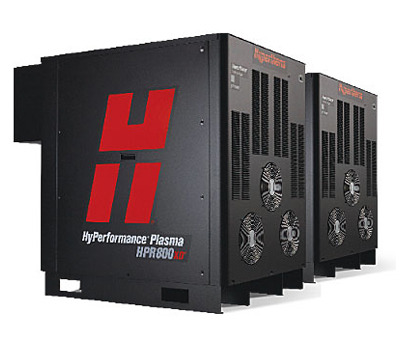

HyPerformance® Plasma HPR800XD®

Detail

The HPR800XD delivers all the mild steel capability of the HPR400XD and adds the thickest stainless steel and aluminum cutting on the market today.

Mild steel cut capacity
Dross free*38 mm (1-1/2″)
Production pierce50 mm (2″)
Maximum cutting capacity80 mm (3.2″)
 Stainless steel cut capacity
Production pierce75 mm (3″)
Maximum pierce**100 mm (4″)
Severance160 mm (6-1/4″)
Aluminum cut capacity
Production pierce75 mm (3″)
Maximum cutting capacity160 mm (6-1/4″)

Unrivaled stainless steel performance, from very thin to very thick
New HDi™ technology delivers HyDefiition® cut quality from 3 mm to 6 mm (12 gauge to 1/4″), optimized gas mixing provides superior results from 6 mm to 80 mm (1/4″ to 3.2″) and patented PowerPierce™ technology enables industry leading piercing and cutting capability on very thick stainless steel.

Impressive process range and versatility
The HPR800XD uses all HyPerformance Plasma processes from 30 to 400 amps for marking, beveling and cutting mild steel, stainless steel and aluminum. This versatility is extended to thick
stainless steel and aluminum, up to 800 amps.

Maximized productivity and improved profiability
LongLife® and HyDefiition technologies deliver more consistent cut quality over a longer period of time. HyPerformance Plasma combines this consistency with fast cutting speeds and quick changeovers to maximize productivity and improve profiability.

Unmatched reliability
Extensive testing, backed by more than four decades of experience, guarantees Hypertherm quality you can count on.

Per power
supplyChiller
Input voltages (3-PH) and currentsVACHzAmpsAmps
200/20850/60262/252 30
22050/6023830
2406021930
38050/6013820
40050/6013120
44050/6012020
4806011015
600608812
Output voltage 200 VDC
 Output current 800A
 Duty cycle100% at 40°C (104°F) at 160 kW
 Power factor0.98 @ 160 kW output
 Maximum OCV 360 VDC
 Dimensions
per power supply
Chiller
118 cm (46.4″) H, 88 cm (34.7″) W, 126 cm (49.7″) L
170.2 cm (67″) H, 87.6 cm (34.5″) W, 137.2 cm (54″) L
 Weight with torch
per power supply
Chiller
 851 kg (1877 lbs)
449 kg (990 lbs)
Gas supply
Plasma gas
Shield gas
Gas pressure
 O2, N2, F5*, H35**, Air, Ar
N2, O2, Air, Ar
8.3 bar (120 psi) Manual gas console
8 bar (115 psi) Automatic gas console
MaterialCurrent
(amps)
Thickness
(mm)
Approximate
cutting speed
(mm/min)
Thickness
(inches)
Approximate
cutting speed
(ipm)
Mild steel
O2 plasma
O2 shield
300.5
3
6
5355
1160
665
.018
.135
1/4
215
40
25
 O2 plasma
Air shield
 80 3
12
20
 6145
1410
545
 .135
1/2
3/4
180
50
25
 O2 plasma
Air shield
130 6
10
25
 4035
2680
550
 1/4
3/8
1
 150
110
20
O2 plasma
Air shield
 260 10
20
32
 3440
2170
1135
 3/8
3/4
1-1/2
 180
90
35
O2 plasma
Air shield
 400 12
25
50
80
 4430
2210
795
180
 1/2
1
2
3
 170
85
30
10
Stainless steel
F5 plasma
N2 shield
 60 3
4
5
6
 2770
2250
1955
1635
 .105
.135
3/16
1/4
 120
95
80
60
H35 and N2 plasma*
N2 shield
 130 6
12
20
 1835
875
305
 1/4
1/2
3/4
 70
30
15
H35 and N2 plasma*
N2 shield
2606
12
20
 3980
1790
1320
 1/4
1/2
3/4
 150
65
55
H35  plasma*
N2 shield
40020
50
60
 1100
400
280
 3/4
2
2-1/2
 45
15
10
H35 and N2 plasma*
N2 shield
40020
50
80
 1810
520
180
 3/4
2
3
 75
20
10
H35  plasma*
N2 shield
80075
125
160
464
155
100
3
5
6-1/4
18
6
4
Aluminum
H35 and N2 plasma*
N2 shield
 130 6
12
20
 2215
1455
815
 1/4
1/2
3/4
 85
55
35
N2 plasma*
Air shield
 26012
20
32
 4290
1940
940
 1/2
3/4
1-1/4
 160
80
40
H35 and N2 plasma*
N2 shield
 40012
50
80
5190
1000
210
 1/2
2
3
 200
40
10
N2 plasma
N2 shield
60050
60
80
1048
832
600
2
2-1/2
3
40
30
26
H35 plasma*
N2 shield
 80075
160
907
179
 3
6-1/4
 35
7
