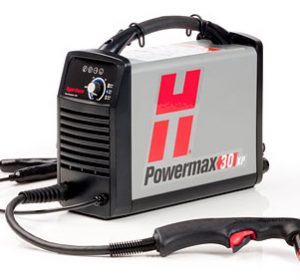

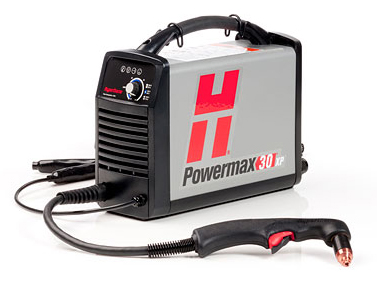

Professional-grade plasma system with internal air compressor for high portability and easy metal cutting.

CapacityThicknessCut speed
Recommended8mm500 mm/min
 Severance10mm250 mm/min
16mm125 mm/min

Easy-to-setup and operate

  • Operate it anywhere with the internal air compressor.
  • Plug into any 120 or 240 V power with Auto-Voltage™ technology and included plug adapters.
  • Highly portable. The smallest, lightest weight system in its class.

Finish jobs faster

  • Do more in less time. Fast cutting speeds and superior cut quality result in less secondary operations.
  • Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature.
  • One tool to cut a variety of metal types and thicknesses.

Rugged and reliable

  • New AIR T30 torch is rugged and designed to withstand the toughest environments.
  • Robust internal air compressor eliminates the costs associated with an external compressor.
  • Hypertherm Certified™ reliability ensures performance in the most demanding environments


System includes

  • Power supply, AIR T30 hand torch with 15′ lead and work clamp with 15′ lead
  • 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits
  • Operator and safety manuals
  • 1 nozzle and 1 electrode
  • Carrying strap

High performing technology
The new patent-pending consumable designs enable consistent cutting by optimizing the air flow from the compact, internal
compressor. Coupled with the highly effective moisture removal system, the Powermax30 AIR provides great cut quality and performance in hot and humid conditions.

Input voltages120–240 V, 1-PH, 50/60 Hz
Input current @ 2,5 kW120–240 V, 1-PH, 29–15 A
Output current15–30 A
Rated output voltage83 VDC
Duty cycle @ 40° C35%, 240 V

20%, 120 V

Open circuit voltage (OCV)256 VDC
Dimensions with handles420 mm D; 195 mm W; 333 mm H
Weight w/4,5 m torch13,5 kg
Input power cable length3 m
Power supply typeInverter – IGBT
Engine drive requirement5,5 kW for full 30 A output
CertificationsCE, C-Tick, CU/GOST, Ukr, and Serbian
— for use in Europe, Australia, Belarus,
Kazakhstan, Russia, Serbia, Ukraine, and
other countries where accepted.
WarrantyPower supply: 3-year
Torch: 1-year
